Observation 4556

General parameters

AOS

2022-01-01 20:14:05

TCA

2022-01-01 20:20:43, 06m 38s since AOS

LOS

2022-01-01 20:27:22, 13m 16s since AOS

Satellite

NOAA 18, norad id 28654

Ground station

TKiS-1

Configuration

lna

Nooelec SAWBird+ NOAA

filter

Nooelec SAWBird+ NOAA

recipe

unknown (not recorded properly)

antenna

Diamond DP-KE137

receiver

RTL-SDR v3

frequency

137.9125e6

antenna-type

QFH

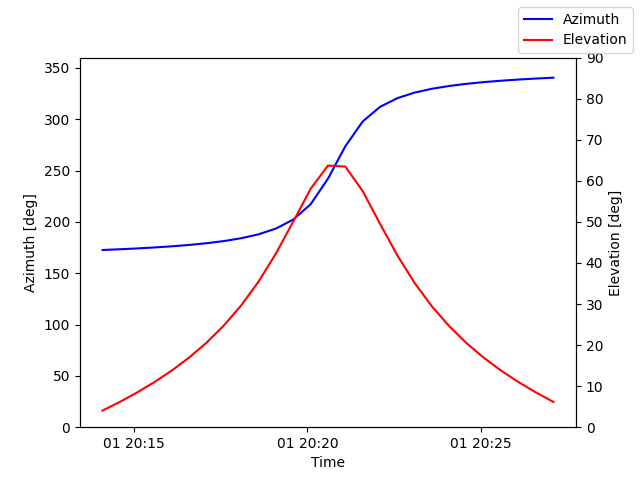

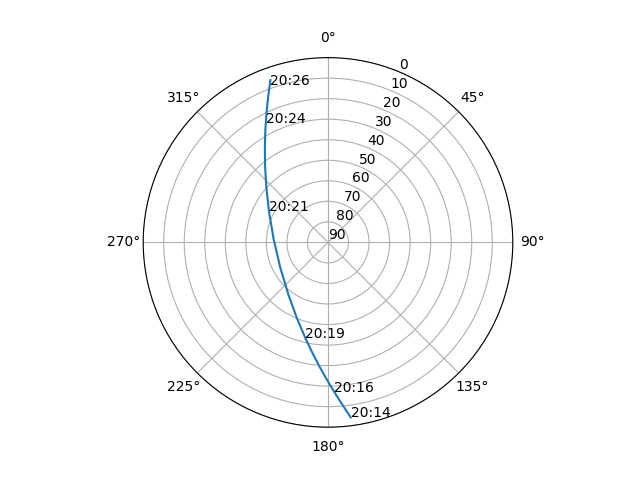

Pass plots

Orbital parameters

Orbit overview

Satellite NOAA 18 at 7236.5km x 836.5km

Inclination i

1.7 deg

Major semi-axis a

7225.6 km

Eccentricity e

0.0015183

Apogee

858.4 km above surface

Perigee

836.5 km above surface

RAAN Ω

1.2 deg

Epoch

2021-12-29T18:59:51.590112 UTC

Period

101.9 min (101m 52s)

TLE format



            1
            28654U
            05018A
            21363.79156933
             .00000112
             00000+0
             84775-4
            0
             9995




            2
            28654
             98.9721
             69.2086
            0015183
             91.6130
            268.6781
            14.12671860856117

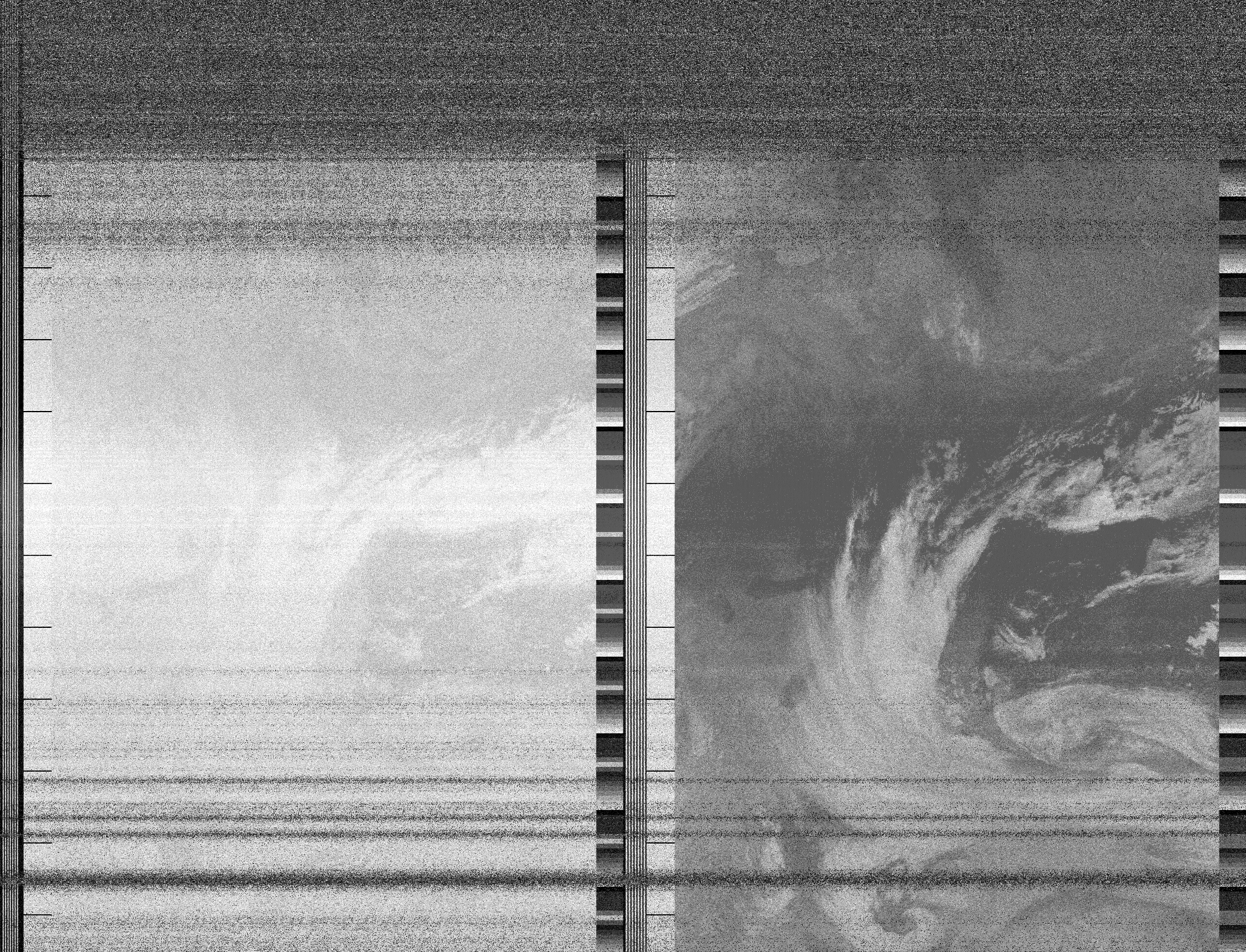

Products

Click on images to get full resolution.

Displaying 1 of 1 item
