Observation 2410

General parameters

AOS

2020-08-24 16:12:03

TCA

2020-08-24 16:18:00, 05m 57s since AOS (corrected, the original observation record incorrectly says TCA = AOS)

LOS

2020-08-24 16:23:57, 11m 54s since AOS

Satellite

NOAA 19, norad id 33591

Ground station

TKiS-1

Configuration

lna

none

filter

none

antenna

WiMo TA-1

protocol

APT

receiver

RTL-SDRv3

frequency

137100000

antenna-type

crossed dipole

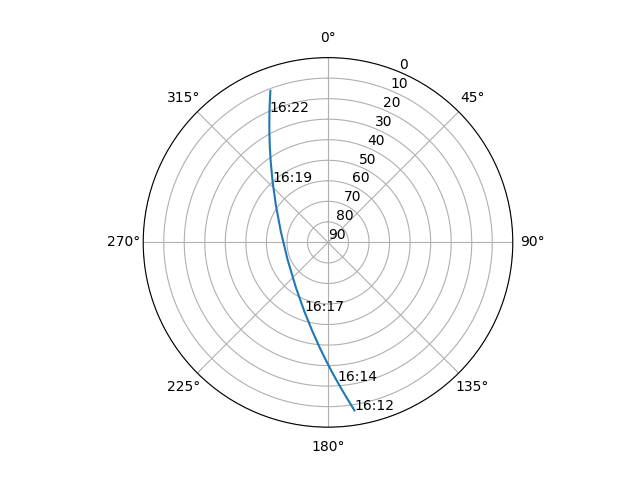

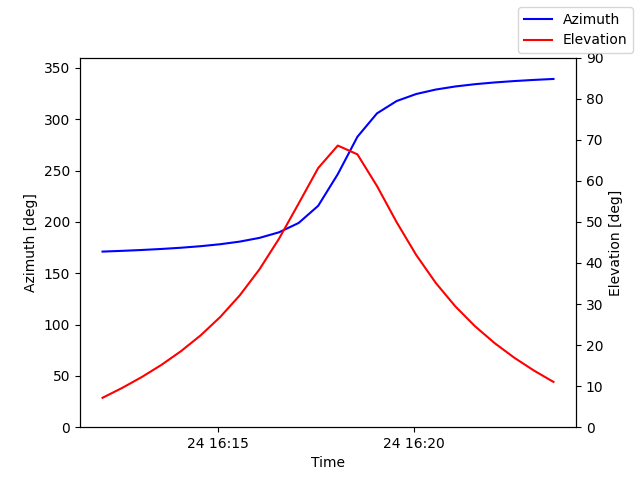

Pass plots

Orbital parameters

Orbit overview

Satellite NOAA 19 at 7235.8km x 838.9km

Inclination i

1.7 deg

Major semi-axis a

7226.4 km

Eccentricity e

0.0012990999999999999

Apogee

857.7 km above surface

Perigee

838.9 km above surface

RAAN Ω

4.2 deg

Epoch

2020-08-20T18:32:15.350496 UTC

Period

101.9 min (101m 53s)

TLE format



            1
            33591U
            09005A
            20233.77239989
             .00000007
             00000-0
             29353-4
            0
             9992




            2
            33591
             99.1962
            240.7947
            0012991
            254.5865
            105.3870
            14.12427836594470

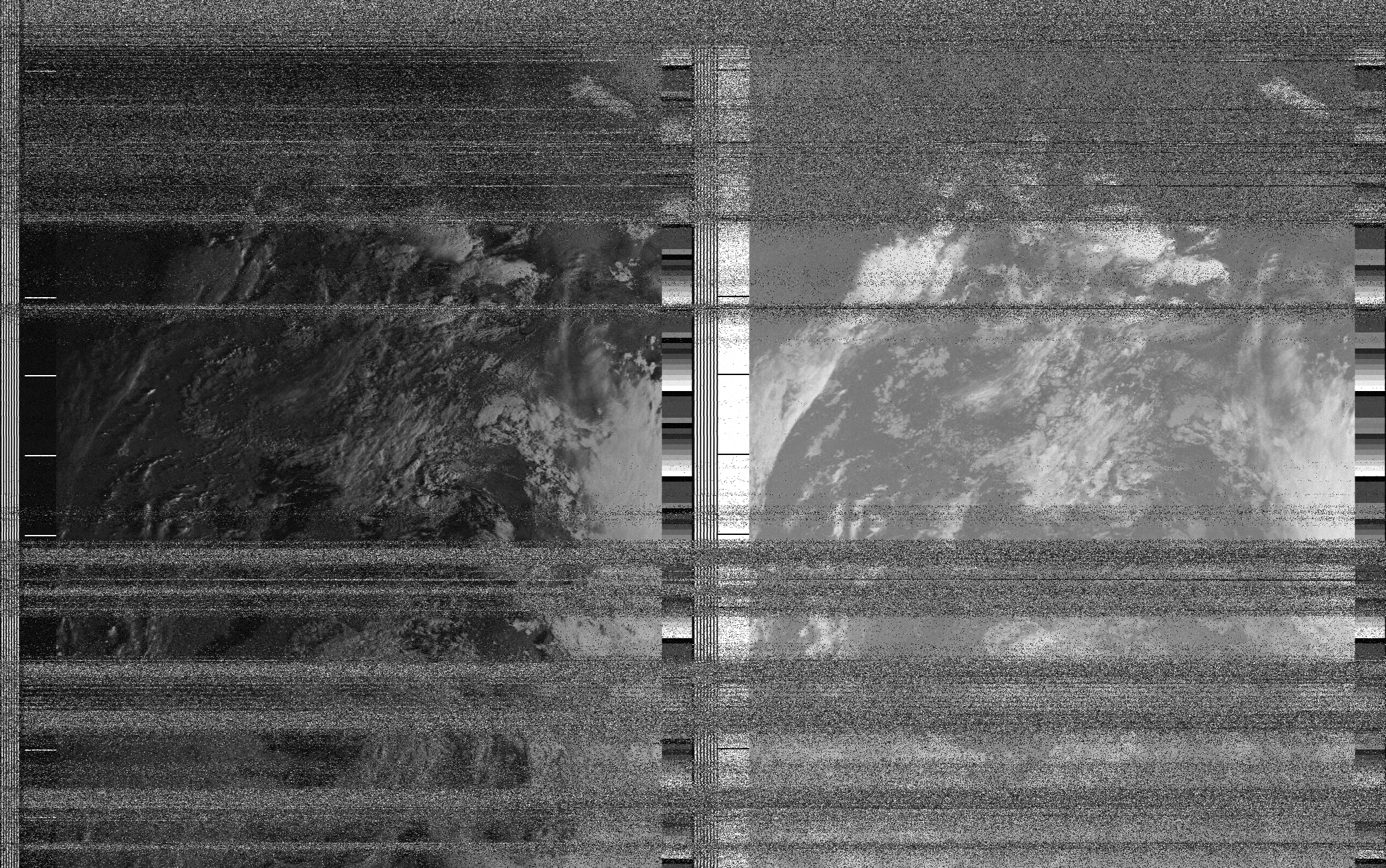

Products

Click on images to get full resolution.

Displaying 1 of 1 item
