Observation 2223

General parameters

AOS

2020-08-14 04:55:02

TCA

2020-08-14 05:00:55, 05m 52s since AOS (corrected, the original observation record incorrectly says TCA = AOS)

LOS

2020-08-14 05:06:47, 11m 45s since AOS

Satellite

NOAA 19, norad id 33591

Ground station

TKiS-1

Configuration

lna

none

filter

none

antenna

WiMo TA-1

protocol

APT

receiver

RTL-SDRv3

frequency

137100000

antenna-type

crossed dipole

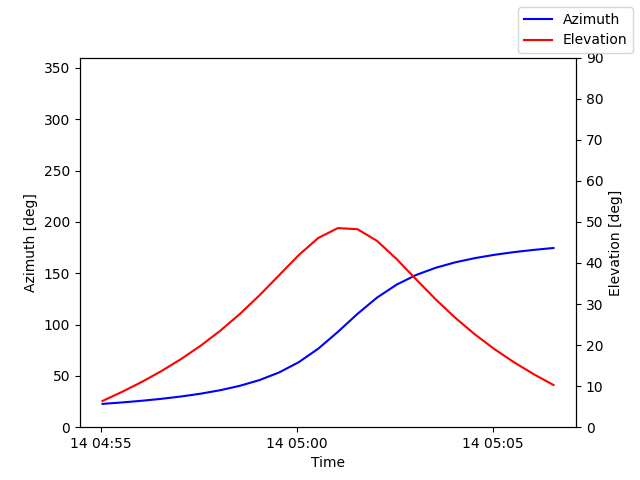

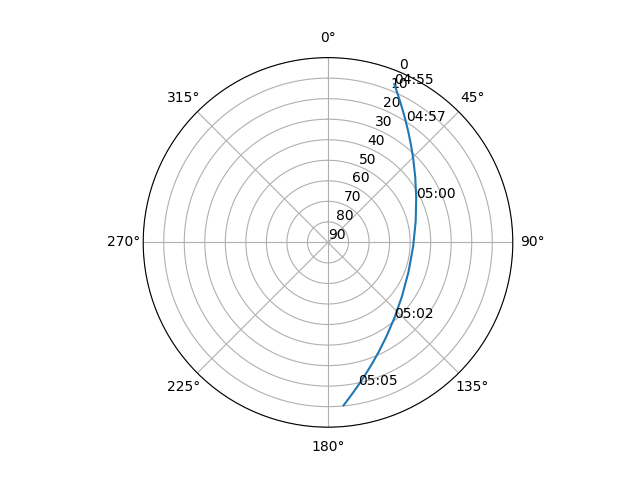

Pass plots

Orbital parameters

Orbit overview

Satellite NOAA 19 at 7235.8km x 838.9km

Inclination i

1.7 deg

Major semi-axis a

7226.4 km

Eccentricity e

0.0012946

Apogee

857.6 km above surface

Perigee

838.9 km above surface

RAAN Ω

4.1 deg

Epoch

2020-08-13T06:19:21.965952 UTC

Period

101.9 min (101m 53s)

TLE format



            1
            33591U
            09005A
            20226.26344868
             .00000022
             00000-0
             37193-4
            0
             9999




            2
            33591
             99.1959
            233.0896
            0012946
            277.3261
             82.6439
            14.12426619593416

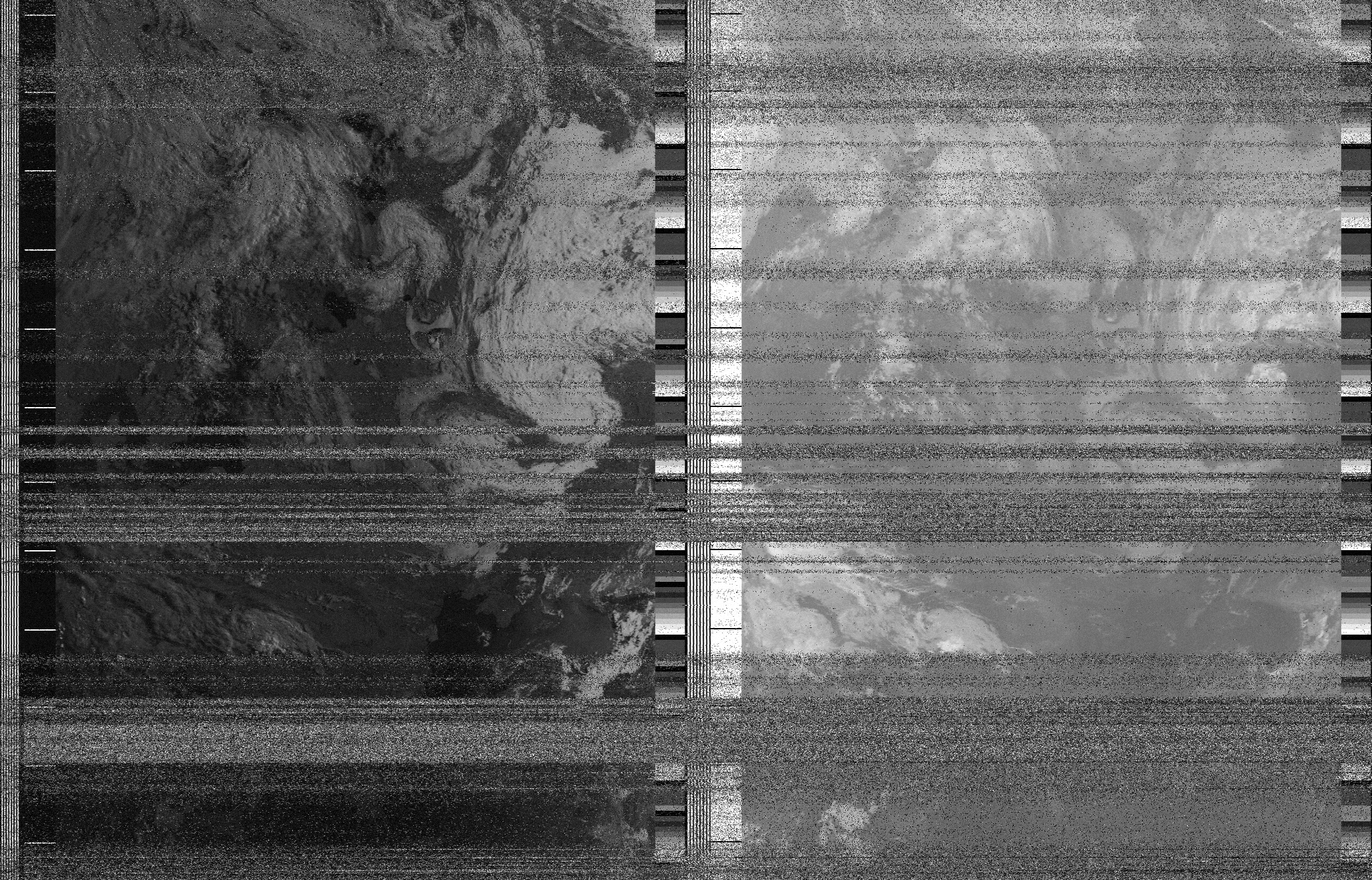

Products

Click on images to get full resolution.

Displaying 1 of 1 item
