Observation 1856

General parameters

AOS

2020-07-24 05:40:02

TCA

2020-07-24 05:45:58, 05m 55s since AOS (corrected, the original observation record incorrectly says TCA = AOS)

LOS

2020-07-24 05:51:54, 11m 51s since AOS

Satellite

NOAA 19, norad id 33591

Ground station

TKiS-1

Configuration

lna

none

filter

none

antenna

WiMo TA-1

protocol

APT

receiver

RTL-SDRv3

frequency

137100000

antenna-type

crossed dipole

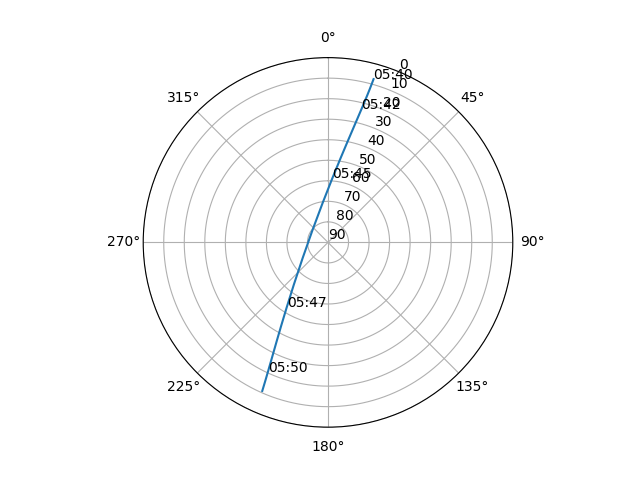

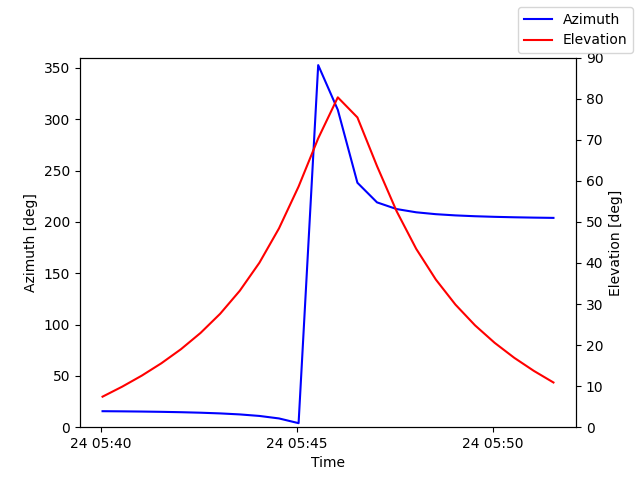

Pass plots

Orbital parameters

Orbit overview

Satellite NOAA 19 at 7236.2km x 838.5km

Inclination i

1.7 deg

Major semi-axis a

7226.4 km

Eccentricity e

0.0013559

Apogee

858.1 km above surface

Perigee

838.5 km above surface

RAAN Ω

3.7 deg

Epoch

2020-07-23T12:10:53.031936 UTC

Period

101.9 min (101m 53s)

TLE format



            1
            33591U
            09005A
            20205.50755824
             .00000045
             00000-0
             49882-4
            0
             9994




            2
            33591
             99.1950
            211.7928
            0013559
            339.0908
             20.9706
            14.12422910590229

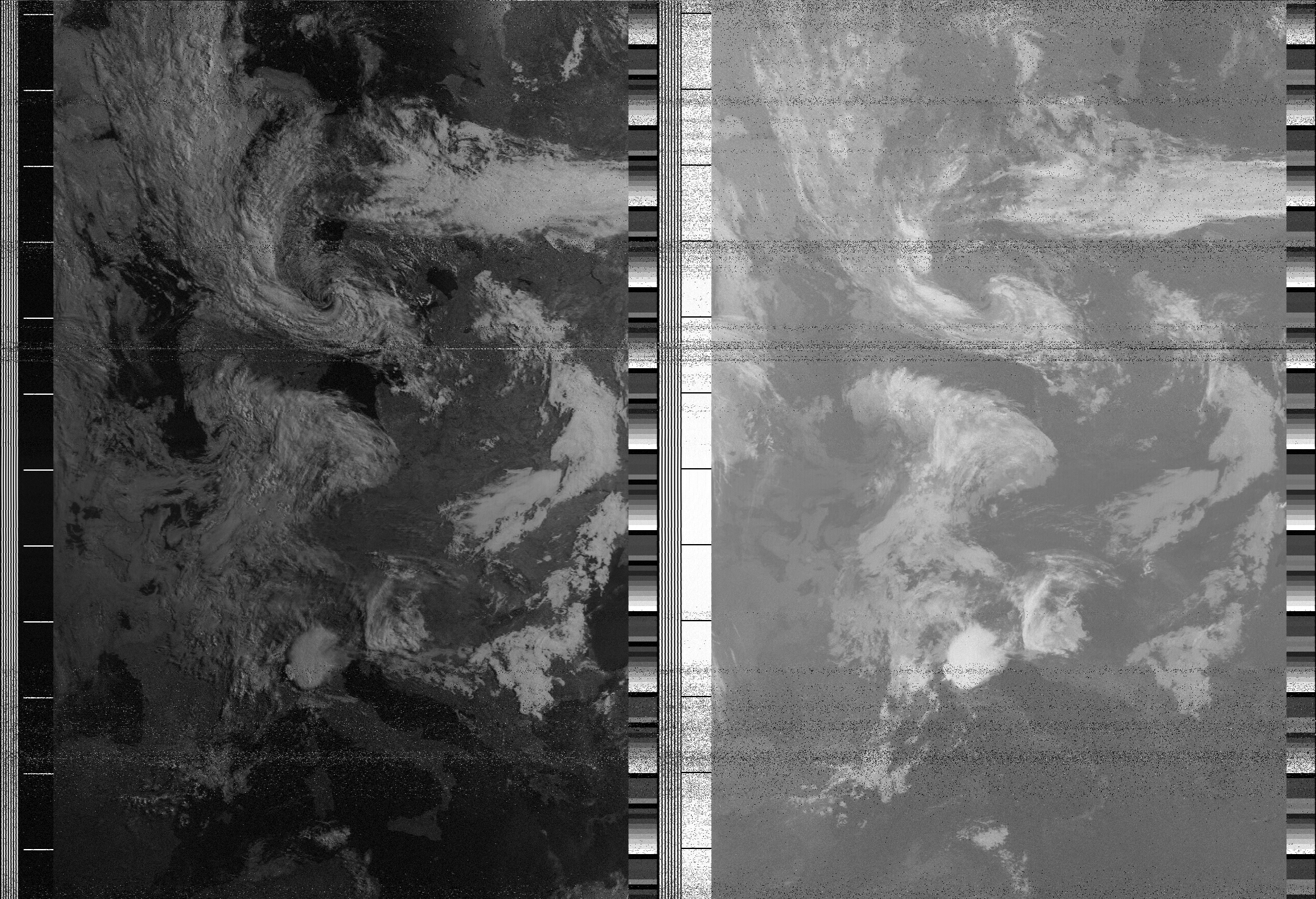

Products

Click on images to get full resolution.

Displaying 1 of 1 item
